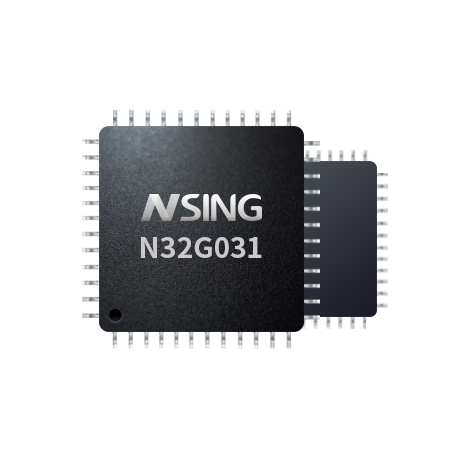

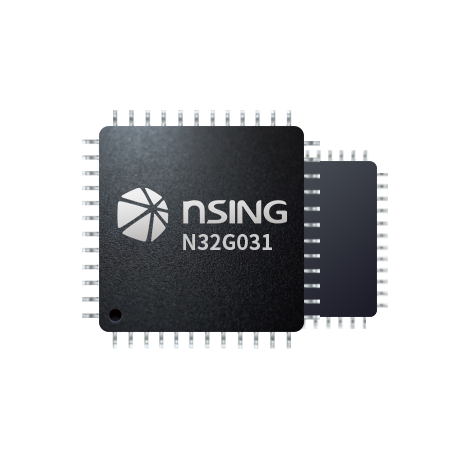

The N32G031 series adopts the 32-bit Arm® Cortex®-M0 core, with a maximum operating frequency of 48MHz. It integrates up to 64KB of Flash and 8KB of SRAM. The series includes a 12-bit 1Msps ADC, one operational amplifier (OPAMP), and one comparator (COMP). It also features multiple communication interfaces such as UART, USART, I2C, and SPI.
• Arm® Cortex®-M0 @48MHz
• Encrypted Memory:
- Up to 64KB eFlash, supports encrypted storage, hardware ECC, 100,000 erase/write cycles, 10-year data retention.
- 8KB SRAM, supports hardware parity check.
• Low Power Management:
- Stop Mode: RTC run, retains up to 8KB SRAM, CPU register retention, all IO retention, 20μs fast wake-up.
- Power Down Mode: Supports wake-up via 3 IOs.
• Clock Input: Supports internal RC or external crystal clock input.
• Reset:
- Supports power-on/power-off/external pin reset.
- Supports watchdog reset.
• Communication Interfaces:
- 3 UART/USART interfaces, including 2 USART interfaces (supporting 1x ISO7816, 1x IrDA, LIN), and 1 UART interface supporting low power features (LPUART).
- 2 SPI interfaces, with 1 supporting I2S.
- 2 I2C interfaces, configurable as master or slave.
• Analog Interfaces:
- 1 12-bit 1Msps ADC, supporting up to 12 external channels.
- 1 operational amplifier with up to 32x programmable gain.
- 1 high-speed analog comparator with built-in 64-level adjustable reference.
• GPIO: Supports up to 40 GPIOs.
• High-speed DMA Controller: Supports 5 channels.
• RTC Real-Time Clock: Supports leap year calendar, alarm events, periodic wake-up, internal/external clock calibration.
• Buzzers: 2 buzzers, supporting complementary output with up to 16mA drive capability.
• Timers and Counters:
- 2 16-bit advanced timers, supporting 6 complementary PWM outputs.
- 1 16-bit general-purpose timer, supporting input capture/output compare/PWM output.
- 1 16-bit basic timer.
- 1 16-bit low-power timer.
- 1 24-bit SysTick.
- 1 7-bit window watchdog (WWDG).
- 1 12-bit independent watchdog (IWDG).
• Hardware Divider (HDIV) and Square Root Accelerator (SQRT).
• Security Features:
- Flash storage encryption.
- CRC16/32 calculation.
- Supports write protection (WRP), multiple read protection (RDP) levels (L0/L1/L2).
- Supports clock failure detection, tamper detection.
• Identification:
- 96-bit UID and 128-bit UCID.
• High-Reliability Operating Environment:
- 1.8V to 5.5V / -40℃ to 105℃.
- ±4kV ESD (HBM).
N32G031 Series User Manual
N32G031 Series Errata Sheet
N32G031 Series Security Startup(IEC60730) Application Note
Setting up the GCC development environment for the N32G031 series
N32G031 Series Product Brief
N32G031 Series Datasheet
N32G031C8L7_STB
N32G031F6S7_STB
N32G031K8Q7_STB
N32G031K8Q7-1_STB
