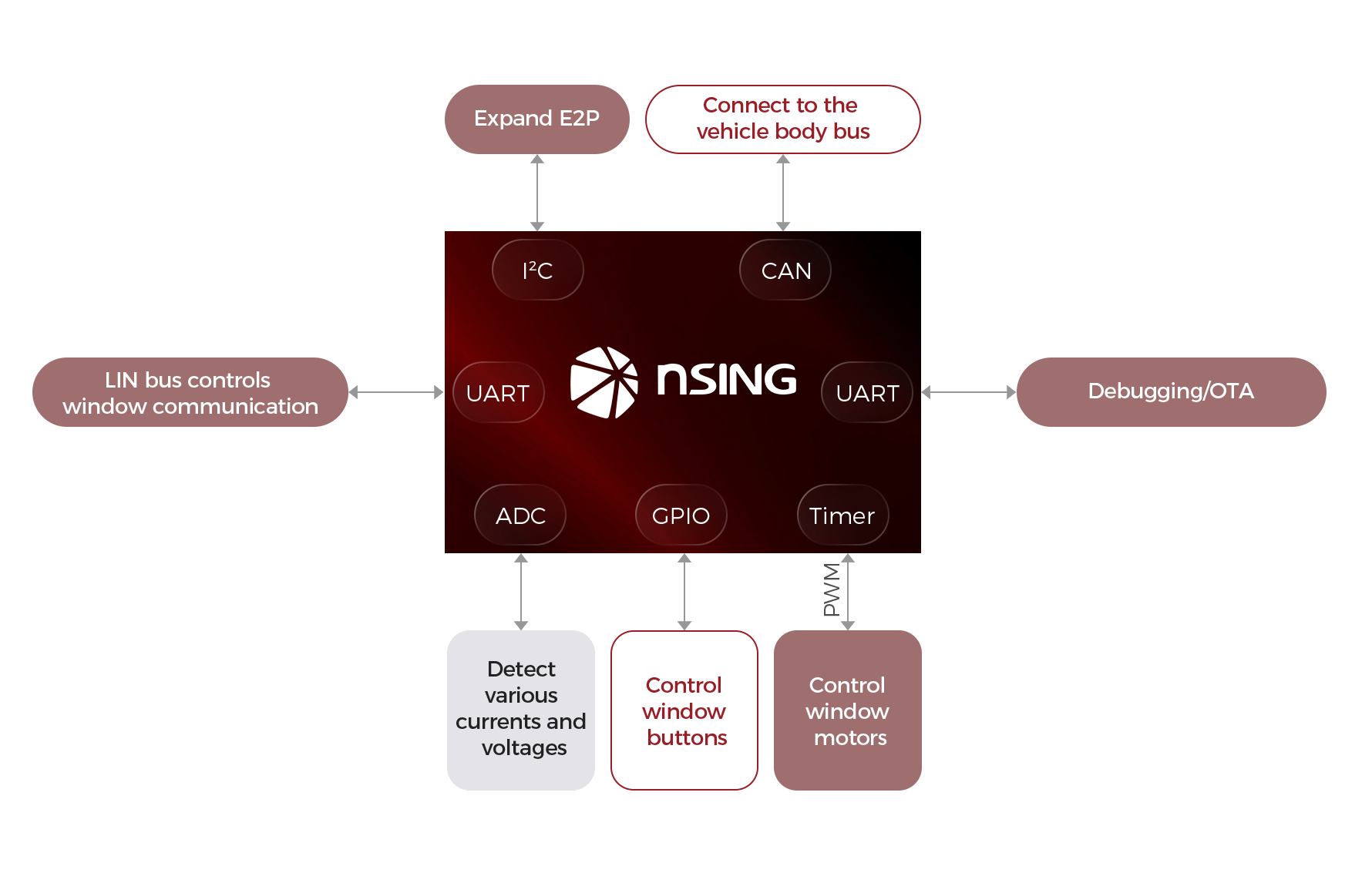

Functional Features:

• 10-20 multiple AD channels for detecting various currents/voltages.

• 1 CAN channel for connecting to the vehicle body bus.

• 1 LIN bus for communicating window control information.

• 1 I2C channel for expanding E2P to store configuration information.

• Multiple GPIOs for controlling buttons. • 1 USART for debugging/OTA．

• 4 channels for window motor control with GPIO/PWM control．

Advantages of the N32G455 Chip:

• High frequency of 144MHz improves computation speed, enabling more precise motor control.

• Arm® Cortex®-M4 core with a high degree of peripheral resource integration and reliability.

• 5Msps high-speed ADC sampling, suitable for automotive and motor applications with high ADC requirements．

• Dynamic operating power consumption of 60μA/MHz and static power consumption of 2μA．

• Built-in hardware acceleration engine for password algorithms, ensuring high security.

Recommended Models:

• N32G455
