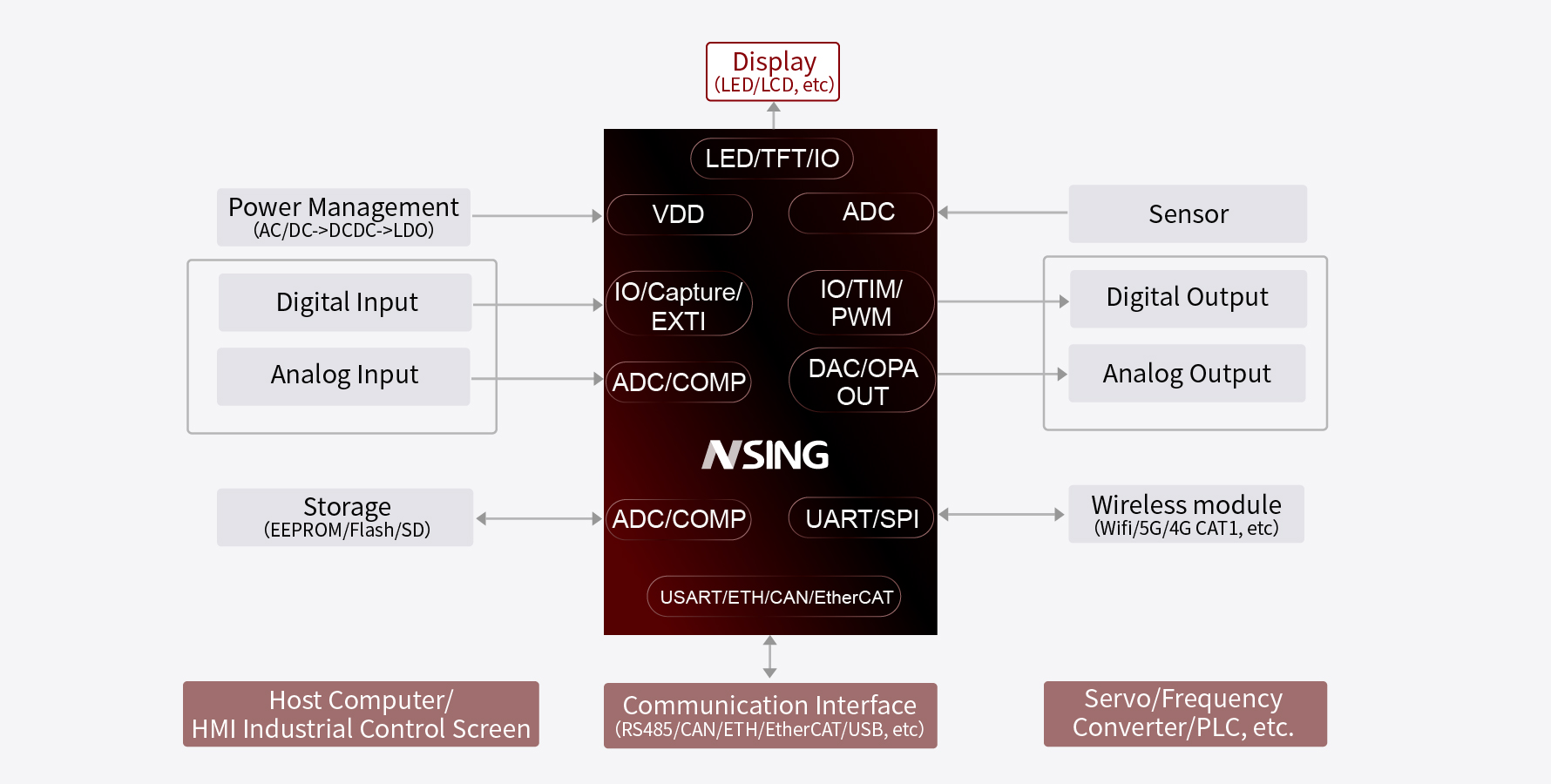

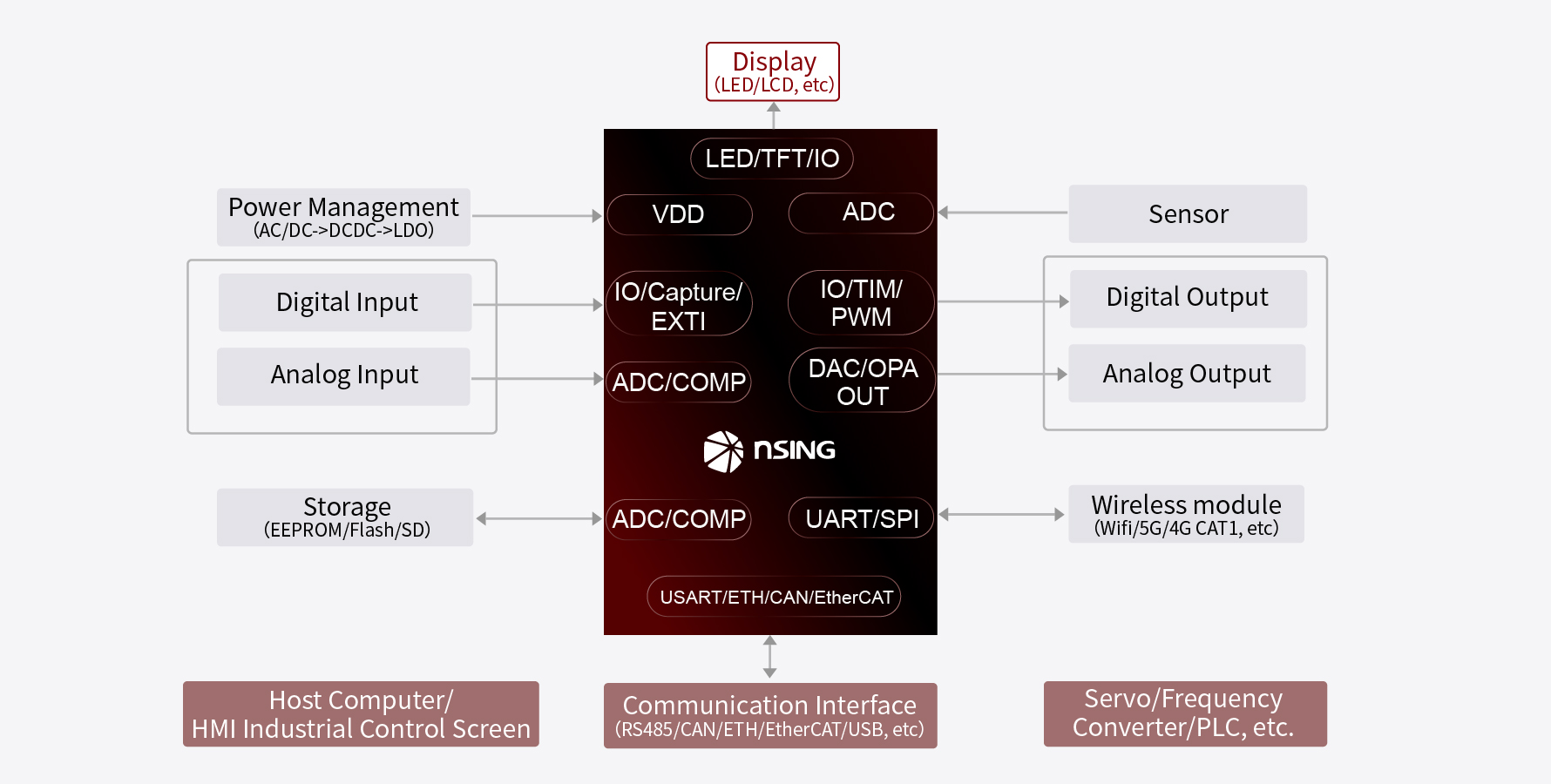

As an intermediate device in factory automation systems, PLCs have provided multiple interfaces needed to connect sensors and other devices to host systems for many years. When serving Industrial Internet of Things applications, PLC systems not only need to support a greater number of terminal devices and local processing capabilities but also need to support complex network interconnections.

N32 Application Advantages:

·         Multi-series MCU options with M4F and M7 cores operating at 144MHz-600MHz frequencies, built-in CORDIC supporting integer and floating-point operations, storage space 512KB-4MB, with CCM (H4 series) and large-capacity TCM (H7 series) resources, powerful performance meeting product application performance requirements

·         Integrated multiple communication interfaces: ETH, EtherCAT, USB-HS, CAN FD, USART/RS485, SPI, I2C, etc., where CAN/UART/RS485 interfaces can be mapped to any I/O to meet different peripheral communication interface requirements

·         Integrated 12-bit ADC up to 4.7Msps, 12-bit DAC, low-latency COMP comparator; rich timer resources: ultra-high precision 100-125ps HRTIMER, ns-level precision advanced timer ADTIMER, low-power timer LPTIMER, built-in RTC module

·         High reliability, operating temperature range: -40℃ to +105℃, strong EFT performance, power supply +/-4KV Class A, IO +/-2KV Class A

Recommended Models:

·         N32H7xx / N32H47x / N32G45x
