The high-speed fan application utilizes sensorless FOC control, making it suitable for fan products such as vacuum cleaners, hair dryers, bladeless fans, and air purifiers.

Features:

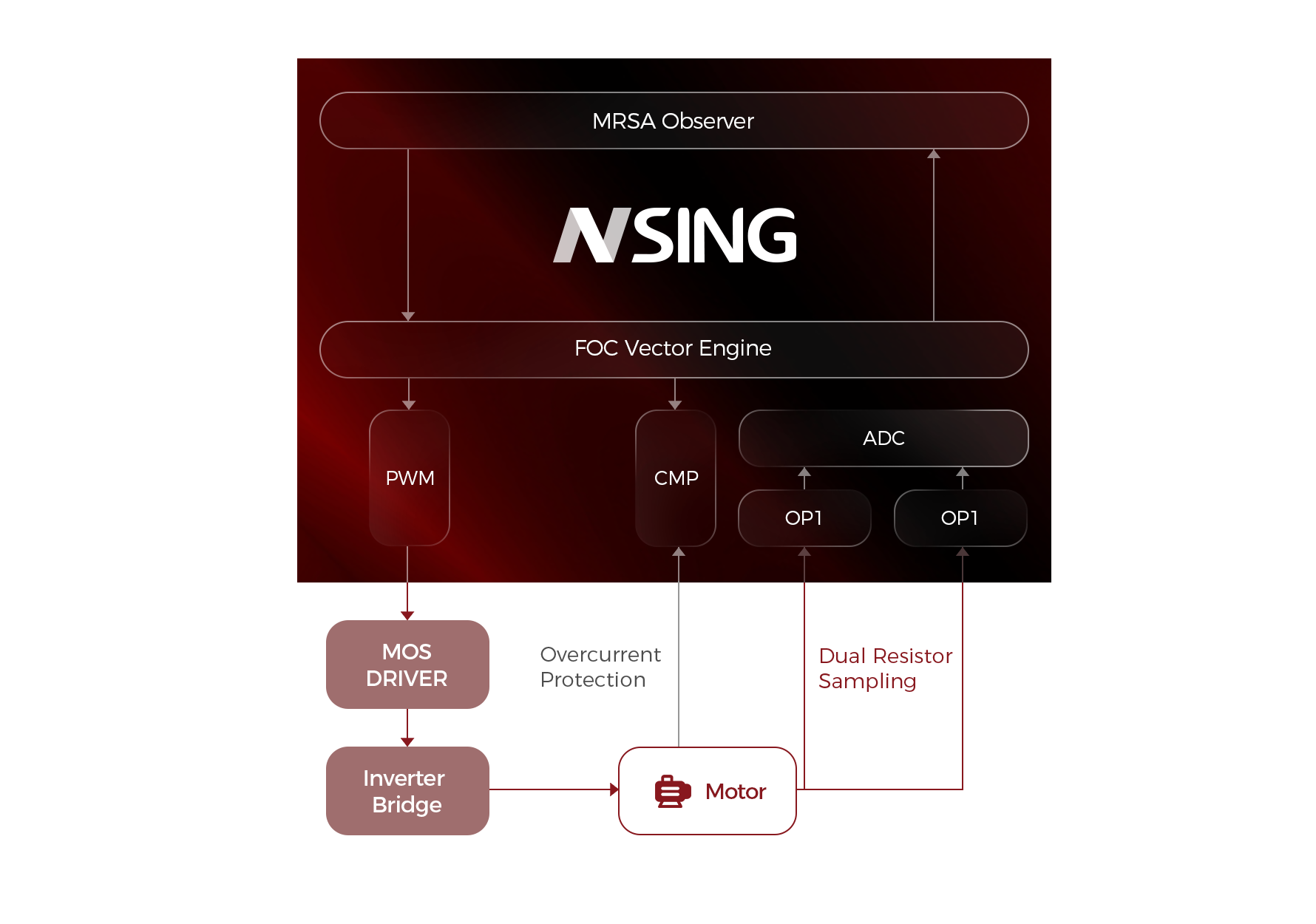

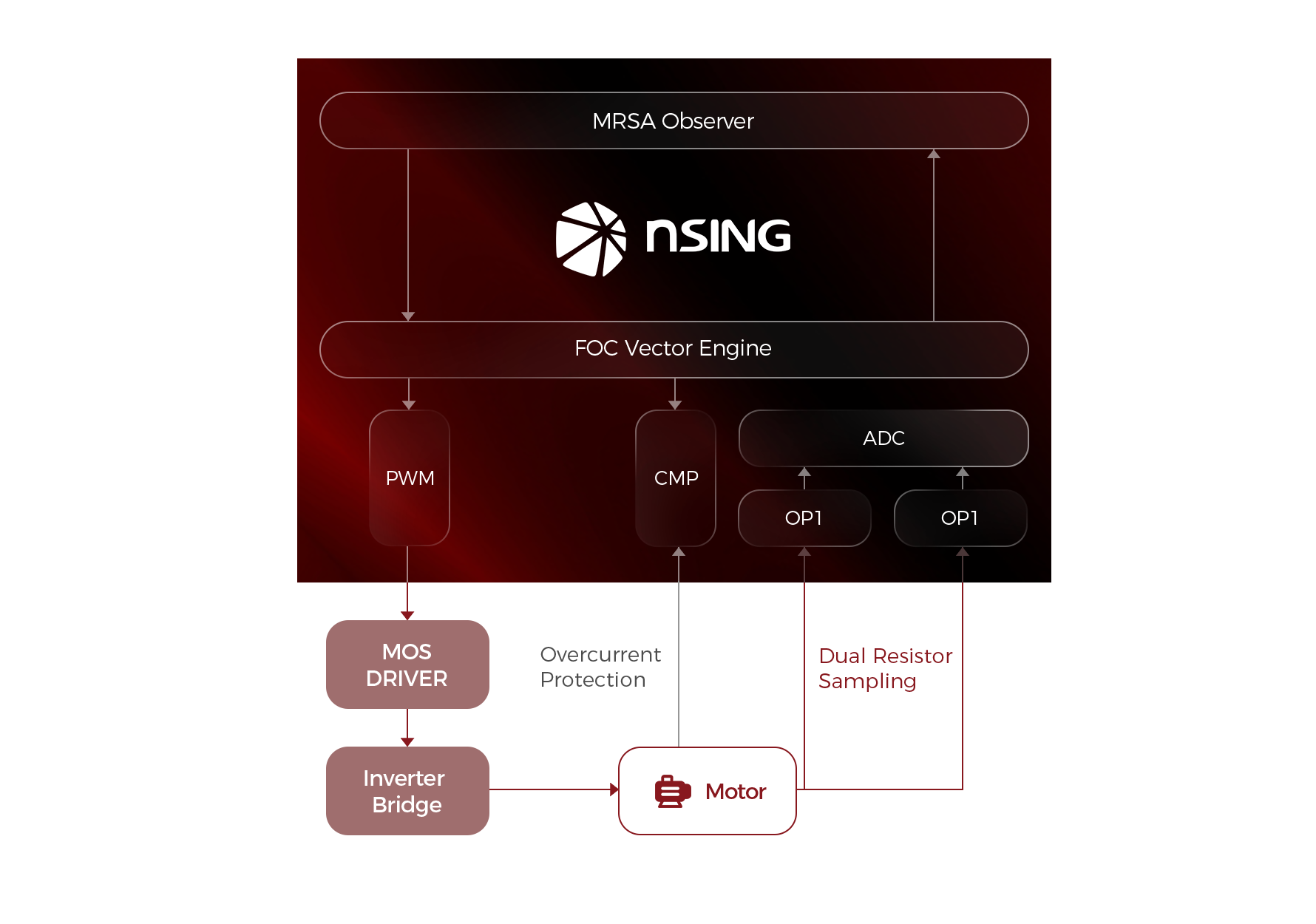

• Dual-resistor sampling sensorless FOC control using a model reference adaptive algorithm, resulting in minimal torque fluctuations

• High speed of 80,000 RPM to 100,000 RPM

• Wide voltage constant power control

• PWM carrier frequency: 20 kHz

• Forward and reverse wind startup

• Power: 120W to 320W

• Input: DC (16V to 30V)

• Protection: Supports overvoltage/undervoltage protection, software and hardware overcurrent protection, phase loss protection, and stall protection

Recommended Models:

• N32G435 / N32M418
