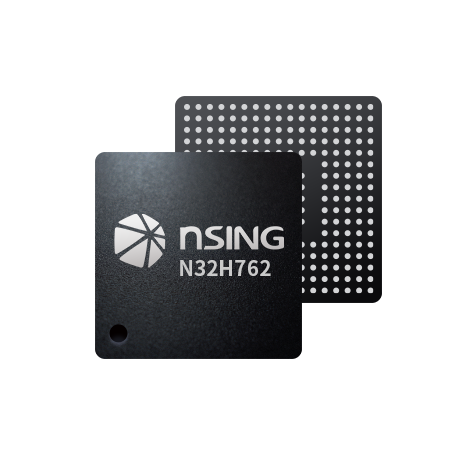

N32H762 series uses an ARM Cortex-M7 core, operating at frequencies up to 600MHz, supporting double-precision floating-point calculations and DSP instructions. It features (2/4MB) of on-chip FLASH, integrates up to 1504KB of SRAM (including 1024KB TCM SRAM and 480KB SRAM) + 4KB Backup SRAM. It integrates 3 12-bit 5Msps ADCs, 4 high-speed comparators, 6 12-bit DACs, multiple high-speed U(S)ARTs, I2C, xSPI, SPI, USBFS Dual Role, USBHS Dual Role, CAN-FD, SDRAM, FEMC, SDMMC, and 10/100/1000M Ethernet communication interfaces. It supports Digital Camera Interface (DVP), TFT-LCD graphical interface, JPEG hardware codec, and GPU. It has a built-in high-performance encryption algorithm hardware acceleration engine, supporting AES/TDES, SHA, SM4 algorithms, TRNG true random number generator, and CRC8/16/32. It supports up to 166 GPIOs, with package types including LQFP176, UFBGA176+25, LQFP208, and TFBGA240+25 packages.
-
