The N32L433 series features a 32-bit Arm® Cortex®-M4F core operating at up to 108MHz, supporting floating-point operations and DSP instructions. It integrates up to 128KB of embedded encrypted Flash memory and 32KB of SRAM. The series includes a variety of high-performance analog peripherals, including a 12-bit 5Msps ADC, 2 independent rail-to-rail operational amplifiers, 2 high-speed comparators, and a 1Msps 12-bit DAC. It also incorporates a low-power magnetic flow metering module, multiple U(S)ART, I2C, SPI, USB, and CAN digital communication interfaces, and hardware acceleration engines for various cryptographic algorithms.

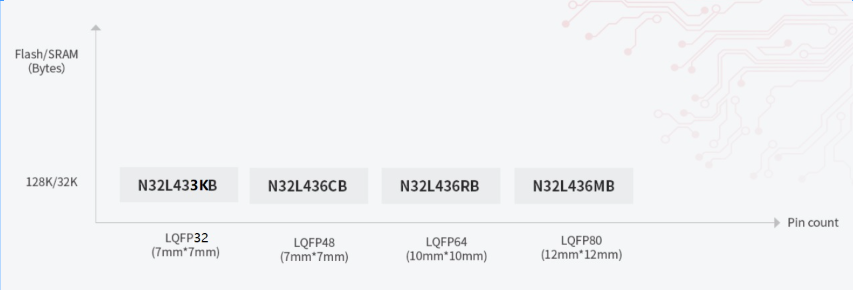

Product Display

Main Features

• Processor: Arm® Cortex®-M4F @108MHz, 135DMIPS, with 2KB instruction cache supporting zero-wait state execution from Flash.

• Encryption Memory:

- Up to 128KB eFlash supporting encryption, partition management, and data protection with hardware ECC, 100,000 erase cycles, and 10 years data retention.

- Up to 32KB SRAM with hardware parity check.

• Low Power Management:

- Supports Run, Sleep, LP Run, LP Sleep, Stop2, and Standby modes.

- Low-power magnetic flow metering module (LPRCNT) operable in Stop2 mode.

• High-Performance Analog Interfaces:

- 1x 12-bit 5Msps ADC with up to 16 channels.

- 2x rail-to-rail operational amplifiers with up to 32x programmable gain.

- 2x high-speed comparators with 64-level programmable references.

- 1x 12-bit DAC.

- Internal 2.048V independent reference voltage source.

• Communication Interfaces:

- 4x U(S)ART interfaces (2x USART supporting ISO7816, IrDA, LIN; 2x UART).

- 1x LPUART supporting MCU wake-up in STOP2 low-power mode.

- 2x SPI interfaces supporting I2S communication.

- 2x I2C interfaces in master/slave mode.

- 1x USB2.0 Full Speed Device interface.

- 1x CAN 2.0A/B bus interface.

• Other Features:

- High-speed DMA controller with 8 channels.

- RTC with leap year calendar, alarm events, periodic wake-up, and internal/external clock calibration.

- Various timers including advanced, general-purpose, basic, and low-power timers.

- Security features include hardware-accelerated cryptographic algorithms (AES, DES, TDES, SHA, MD5), Flash encryption, multi-user partition management, TRNG, CRC calculations, write protection, read protection, secure boot, secure firmware download, secure updates, external clock failure detection, and tamper detection.

• Reliable Operating Environment:

- Operating voltage range: 1.8V to 3.6V.

- Operating temperature range: -40°C to 105°C.

- ESD protection: ±4kV (HBM).
