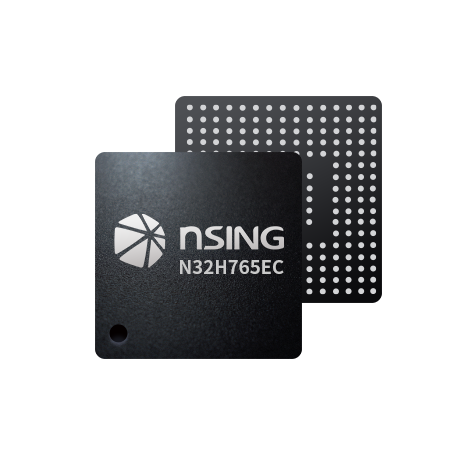

N32H765EC

N32H765EC series uses an ARM Cortex-M7 core, running at frequencies up to 600MHz, supporting doubleprecision floating-point operations and DSP instructions. It integrates (2/4MB) of on-chip FLASH and up to 1504KB of SRAM (including 1024KB TCM SRAM and 480KB SRAM) + 4KB Backup SRAM. The series includes 3 12-bit 5Msps ADCs, 4 high-speed comparators, and 6 12-bit DACs. It integrates multiple high-speed communication interfaces including U(S)ART, I2C, xSPI, SPI, USBFS Dual Role, USBHS Dual Role, CAN-FD, SDRAM, FEMC, SDMMC, 10/100/1000M Ethernet, and EtherCAT. It supports a digital camera interface (DVP), TFT-LCD graphic interface, JPEG hardware codec, and GPU. It features a built-in high-performance encryption algorithm hardware acceleration engine that supports AES/TDES, SHA algorithms, as well as TRNG (True Random Number Generator) and CRC8/16/32. It supports up to 126 GPIOs and is available in UFBGA176+25 packaging.
