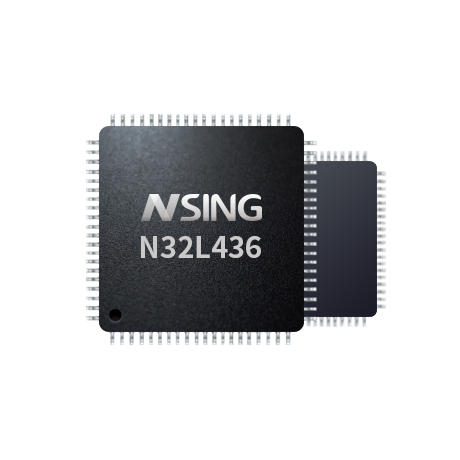

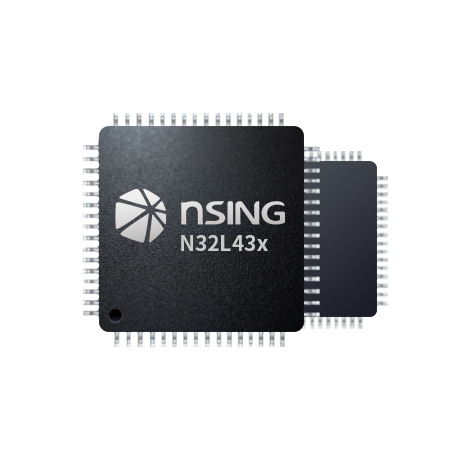

The N32L436 series features a 32-bit Arm® Cortex®-M4F core operating at up to 108MHz, supporting floating-point operations and DSP instructions. It integrates up to 128KB of embedded encrypted Flash memory and 32KB of SRAM. The series includes a variety of high-performance analog peripherals, including a 12-bit 5Msps ADC, 2 independent rail-to-rail operational amplifiers, 2 high-speed comparators, and a 1Msps 12-bit DAC. It also incorporates a low-power magnetic flow metering module, multiple U(S)ART, I2C, SPI, USB, and CAN digital communication interfaces, Segment LCD drive interface, and hardware acceleration engines for various cryptographic algorithms.

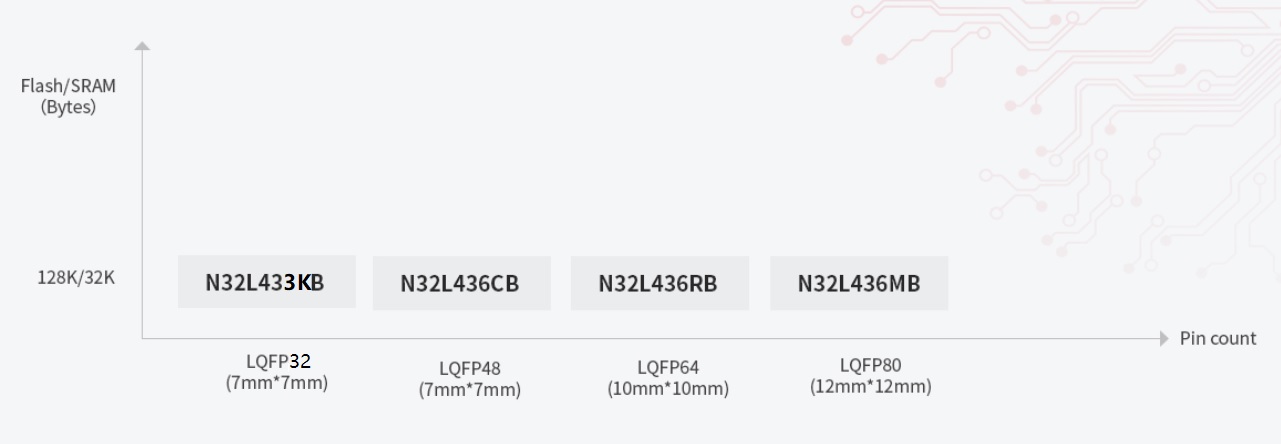

Product Display

Main Features

• Processor: Arm® Cortex®-M4F @108MHz, 135DMIPS, with 2KB instruction cache supporting zero-wait state execution from Flash.

• Encryption Memory:

- Up to 128KB eFlash supporting encryption, partition management, and data protection with hardware ECC, 100,000 erase cycles, and 10 years data retention.

- Up to 32KB SRAM with hardware parity check.

• Low Power Management:

- Supports Run, Sleep, LP Run, LP Sleep, Stop2, and Standby modes.

- Low-power magnetic flow metering module (LPRCNT) operable in Stop2 mode.

• High-Performance Analog Interfaces:

- 1x 12-bit 5Msps ADC with up to 16 channels.

- 2x rail-to-rail operational amplifiers with up to 32x programmable gain.

- 2x high-speed comparators with 64-level programmable references.

- 1x 12-bit DAC.

- Internal 2.048V independent reference voltage source.

• Communication Interfaces:

- 5x U(S)ART interfaces (3x USART supporting ISO7816, IrDA, LIN; 2x UART).

- 1x LPUART supporting MCU wake-up in STOP2 low-power mode.

- 2x SPI interfaces supporting I2S communication.

- 2x I2C interfaces in master/slave mode.

- 1x USB2.0 Full Speed Device interface.

- 1x CAN 2.0A/B bus interface.

• Segment LCD Drive Interface:

- Supports up to 320 segments (8x40) or 176 segments (4x44) for monochrome passive LCD displays.

- Flexible LCD refresh rate (30Hz to 102Hz).

- Supports static 1/2, 1/3, 1/4, 1/8 duty cycle.

- Supports static 1/2, 1/3, 1/4 bias.

- Normal display operation in STOP2 mode.

• Other Features:

- High-speed DMA controller with 8 channels.

- RTC with leap year calendar, alarm events, periodic wake-up, and internal/external clock calibration.

- Various timers including advanced, general-purpose, basic, and low-power timers.

- Security features include hardware-accelerated cryptographic algorithms (AES, DES, TDES, SHA, SM1, SM3, SM4, SM7, MD5), Flash encryption, multi-user partition management, TRNG, CRC calculations, write protection, read protection, secure boot, secure firmware download, secure updates, external clock failure detection, and tamper detection.

• Reliable Operating Environment:

- Operating voltage range: 1.8V to 3.6V.

- Operating temperature range: -40°C to 105°C.

- ESD protection: ±4kV (HBM).

Typical Applications

Smart water meters, smart gas meters, and similar applications requiring robust security, high-performance analog interfaces, and low-power operation.
