N32H474

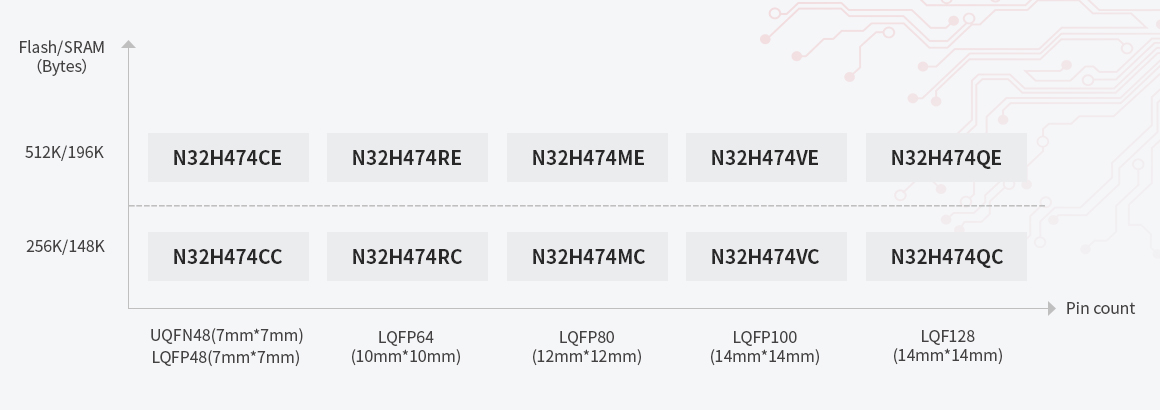

N32H474 series adopts a 32-bit ARM Cortex-M4F core, with a maximum operating frequency of 240MHz, supporting floating-point unit and DSP instructions. It integrates up to 512-KB embedded flash, 192-KB SRAM (including 32-KB CCM SRAM), and 4-KB Backup SRAM. It also integrates 4x 12bit 4.7Msps ADCs, 8x 12bit DAC, 4x PGA, 7x COMP, USB FS Device, U(S)ART, I2C, SPI, CAN-FD, Ethernet, and other communication interfaces. It supports FEMC, xSPI high-speed storage interfaces, I2S audio interface, super high-resolution timer, multiple advanced control timers, general timers, basic timers, low-power timers. It also features a built-in hardware acceleration engine for cryptographic algorithms, supporting AES/TDES, SHA, SM3, SM4, MD5 algorithms, TRNG true random number generator, and CRC16/32.

Contact Us
Main Features

•  CPU Core

―  32-bit ARM Cortex-M4F + FPU, single-cycle hardware multiplication and division instruction, support DSP instruction and MPU

―  Built-in 8-KB instruction Cache supporting Flash acceleration unit for zero-wait program execution

―  Frequency up to 200 MHz, 300 DMIPS

•  Memories

―  512-KByte of embedded Flash memory with ECC

♦  Supports encryption, multi-user partition and data protection

♦  100,000 erase/write cycles and 10-years data retention

―  160-KByte of general SRAM with hardware parity checking

―  32-KByte of CCM SRAM with ECC, defaults to general SRAM after power-up, configurable as CCM SRAM

―  4-KByte of Backup SRAM with ECC available in Standby mode

•  Power Modes

―  Run mode: 45 mA/MHz@240 MHz (peripherals off, 3.3 V@25℃)

―  Stop0 mode: SRAM and all registers can be configured to retention, RTC run

―  Standby mode: typical value 6uA, all backup registers and Backup SRAM retained, all IOs retained, optional RTC run

•  Clock

―  HSE: 4MHz~32MHz high-speed external crystal oscillator

―  LSE: 32.768KHz low-speed external crystal oscillator

―  Built-in multiple high speed PLLs

―  MCO: Supports 2-channel clock outputs, which can be configured independently as clock output

―  HSI: High-speed internal RC 8MHz, with an accuracy of -1.5% to +2% across the full temperature range.

―  LSI: Low-speed internal RC 32KHz, with an accuracy of +/-10% across the full temperature range.

•  Reset

―  Supports power-on/brown-out/external pin reset

―  Supports watchdog reset

―  Supports programmable voltage detection

•  GPIOs

―  Up to 107 GPIOs

•  Communication Interfaces

―  1x USB2.0 FS Device interface, built-in PHY, supports crystal-less mode

―  6x SPI interfaces, 2x I2S interfaces, support half/full duplex mode, multiplexed with SPI interfaces

―  U(S)ART interfaces

♦  4x USART interfaces (support ISO7816, IrDA, LIN)

♦  4x UART interfaces

♦  TX/RX of USART3/UART5/UART8 can be mapped to all pins

―  4x I2C interfaces(Master/Slave) with speed up to 1 MHz where slave mode support dual address response

―  3x CAN-FD bus interface, TX/RX can be mapped to all pins

•  High Performance Analog Interfaces

―  4x 12bit ADCs with 4.7Msps

♦  Multiple precision configuration, support 12-bit, 10-bit, 8-bit, 6-bit sampling precision, resolution up to 16-bit with hardware oversample

♦  Up to 16 external single-ended input channels, 3 internal single-ended input channels, support differential mode and single-ended mode

―  8x 12bit DAC

♦  DAC1~4: Support 1 internal output channel and 1 external output channel, with a sampling rate of 1Msps. Support output channel buffered/unbuffered modes.

♦  DAC5~8: Support 1 internal output channel and 1 external output channel, with a sampling rate of 15Msps. Only support output channel buffered/unbuffered modes.

―  4x rail-to-rail PGAs, support differential mode and single-ended mode

―  7x high-speed comparators (COMP)

―  Supports 1 reference voltage VREFBUF (2.048V/2.5V/2.9V configurable)

―  1x temperature sensor

•  High Speed External Memory Interfaces

―  1x xSPI interface, supporting external SRAM, PSRAM and Flash, supporting XIP

―  1x FEMC (Flexible External Memory Controller) interface, supporting external SRAM, PSRAM, NOR Flash and NAND Flash, 8/16-bit data bus width configurable

•  CORDIC Mathematical hardware accelerator for motor control functions

•  Built-in filter mathematical accelerator FMAC, supporting FIR, IIR filtering

•  DMA Controllers

―  2x DMA controller

―  Each controller supports 8 channels

―  Channel source address and destination address can be configured arbitrarily

•  RTC real-time clock

―  Supports leap-year calendar, alarm event, periodic wake up

―  Supports internal and external clock calibration

•  Timers

―  1x 16bit super high-resolution timer (SHRTIM1)

♦  Supports 6x 16-bit timer units, each timer unit has 2 independent channels, with a maximum control precision of 125ps.

♦  Supports 12 independent PWM outputs or 6 pairs of complementary PWM outputs.

―  3x 16-bit advanced control timers with maximum control precision of 5 ns

♦  Support input capture, complementary output, quadrature encoder input etc.

♦  Each has 6 independent channels, 4 of which support 4 pairs of complementary PWM output.

―  10x 16-bit general purpose timers (GTIM1~10)

♦  GTIM1~7, with a maximum control precision of 5.56ns, each timer has up to 4 independent channels, each channel supports input capture, output comparison, PWM generation, and single-pulse mode output.

♦  GTIM8~10, with a maximum control precision of 5ns, each timer has up to 4 independent channels, each channel supports input capture, output comparison, PWM generation, and single-pulse mode output, only channel 1 supports complementary output with dead time, supports break input.

―  2x 32-bit basic timers

―  2x 16-bit low-power timer, can operate in Stop0 and Standby mode.

―  1x 24-bit SysTick timer.

―  1x 14-bit Window Watchdog (WWDG)

―  1x 12-bit Independent Watchdog (IWDG)

•  Programming Methods

―  Support SWD/JTAG debugging interface.

―  Support UART and USB Bootloader

•  Security Features

―  Flash encryption, multi-user partition management unit (SMPU)

―  Supports write protection (WRP), multiple read protection (RDP) levels (L0/L1/L2)

―  Built-in hardware acceleration engine for cryptographic algorithm

―  Supports AES/TDES, SHA, SM3, SM4, and MD5 algorithms

―  True random number generator(TRNG)

―  CRC16/32 operation

―  Supports secure boot, program encryption download, secure firmware update

―  Supports external clock failure detection, anti-tamper detection.

•  96-bit UID and 128-bit UCID

•  Operating Conditions

―  Operating voltage range: 1.8V~3.6V

―  Operating temperature range: -40℃ ~ 105℃/125℃

―  ESD: ±4KV (HBM model), ±1KV (CDM model)

―  EFT: EFT:VDD (+/-4KV,level A),I/O (+/-2KV,level A)

Typical Applications

UPS, digital power supplies, energy storage, battery swapping stations/charging piles, photovoltaic inverters, etc.

Mass Production Debugging Tools

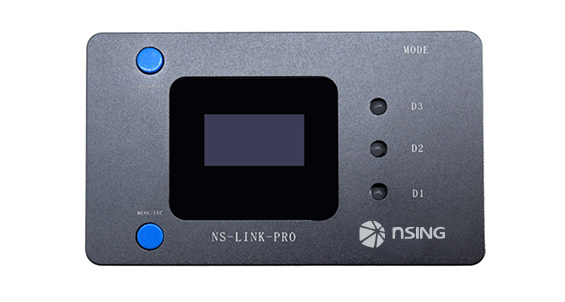

NS-Link-Pro
illustrate:NS-Link-Pro
