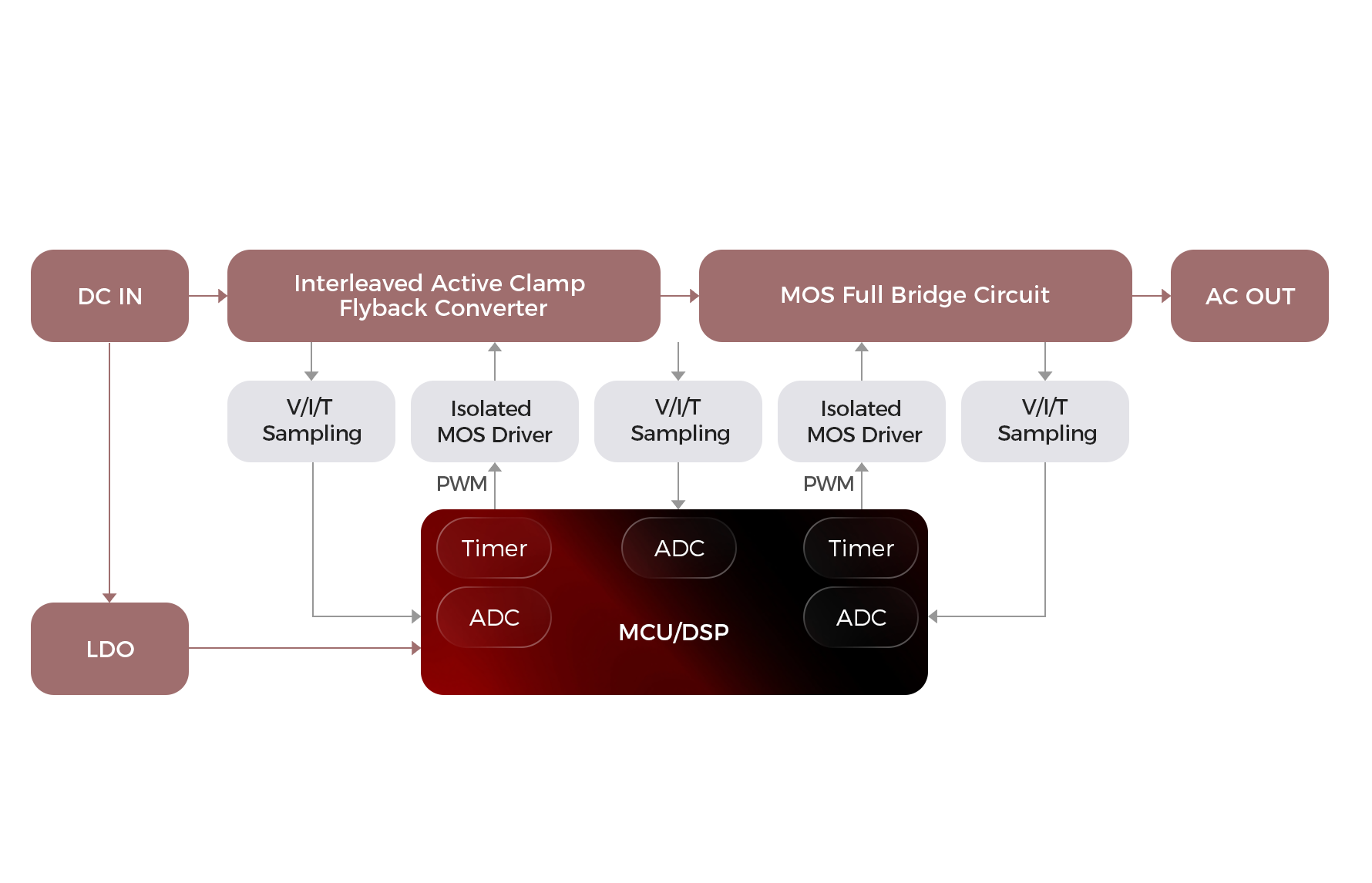

The main chip features of the inverter module are as follows:

• High operating frequency of 200 MHz • High reliability Flash memory, supporting ECC (Error Correction Code) and storage encryption.

• Large SRAM capacity of 196 KB, with strong reliability, supporting parity check and ECC

• Abundant and high-precision timer resources: 1 high-precision timer (125 ps accuracy), 3 advanced timers (5 ns accuracy), and 10 general-purpose timers (5 ns or 10 ns accuracy)

• 3 U(S)ART TX/RX pins support full pin mapping, facilitating customer pin allocation.

• CAN-FD pins support full pin mapping, facilitating customer pin allocation.

• Fast ADC sampling rate of 4.7 Msps, supporting single-ended and differential modes.

• High-performance analog operational amplifiers, supporting single-ended and differential modes, with GBW of 40 MHz, SR of 20 V/μs (single-ended mode), and SR of 40 V/μs (differential mode) • Cordic supports fixed-point and floating-point operations.

• Strong EFT performance: power supply +/- 4 kV, Class A; IO +/- 2 kV, Class A

• Strong charged ESD performance: power/ground +/- 10 kV, Class A; IO +/- 1.5 kV, Class A

Recommended Models:

• N32G45x / N32H47x
