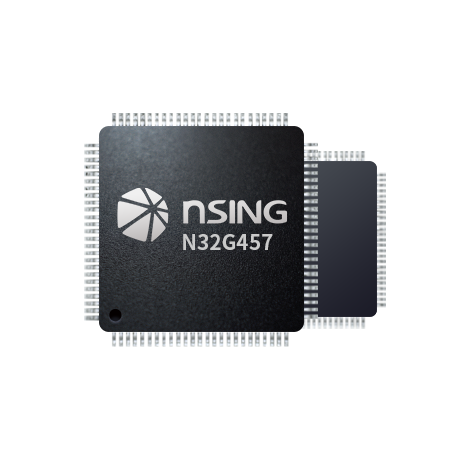

N32G457

The N32G457 series (industrial internet type) adopts the 32-bit Arm® Cortex®-M4F core, integrating up to 512KB on-chip FLASH, 144KB SRAM, up to 17 high-performance analog devices, 18 digital communication interfaces, and a 10/100M Ethernet interface and digital camera interface. It also includes more than 10 built-in hardware encryption acceleration engines and supports storage encryption, user partition protection, secure boot, and other security features.

Contact Us
Product Display


Main Features

•        Arm® Cortex®-M4F @144MHz, 180DMIPS, with 8KB instruction cache, supporting Flash accelerator for zero-wait program execution.

•        Large, encrypted storage

-      Up to 512KBytes eFlash, supporting encrypted storage, partition management and data protection, ECC verification, 100,000 erase/write cycles, 10-year data retention.

-      144Kbytes SRAM, supporting hardware parity check.

•        Abundant communication interfaces

-      1 EMAC interface, supporting 10M/100M Ethernet.

-      1 digital camera interface (Digital Video Port)

-      Up to 7 serial ports, 3 USART interfaces (supporting 1xISO7816, 1xIrDA, LIN), 4 UART interfaces.

-      3 SPI interfaces, 2 of which support I²S - 1 QSPI interface

-      4 I²C interfaces

-      1 SDIO interface

-      1 USB2.0 Full Speed Device interface

-      2 CAN 2.0A/B bus interfaces

•        High-performance analogy interfaces

-      1.8V~3.6V/-40℃~105℃

-     ±4kV ESD(HBM)

Typical Applications

Network printer, 3D printer, gate, elevator controller, charging pile, PLC, DTU, etc.

Mass Production Debugging Tools
NS-Link-Pro
illustrate:NS-Link-Pro
