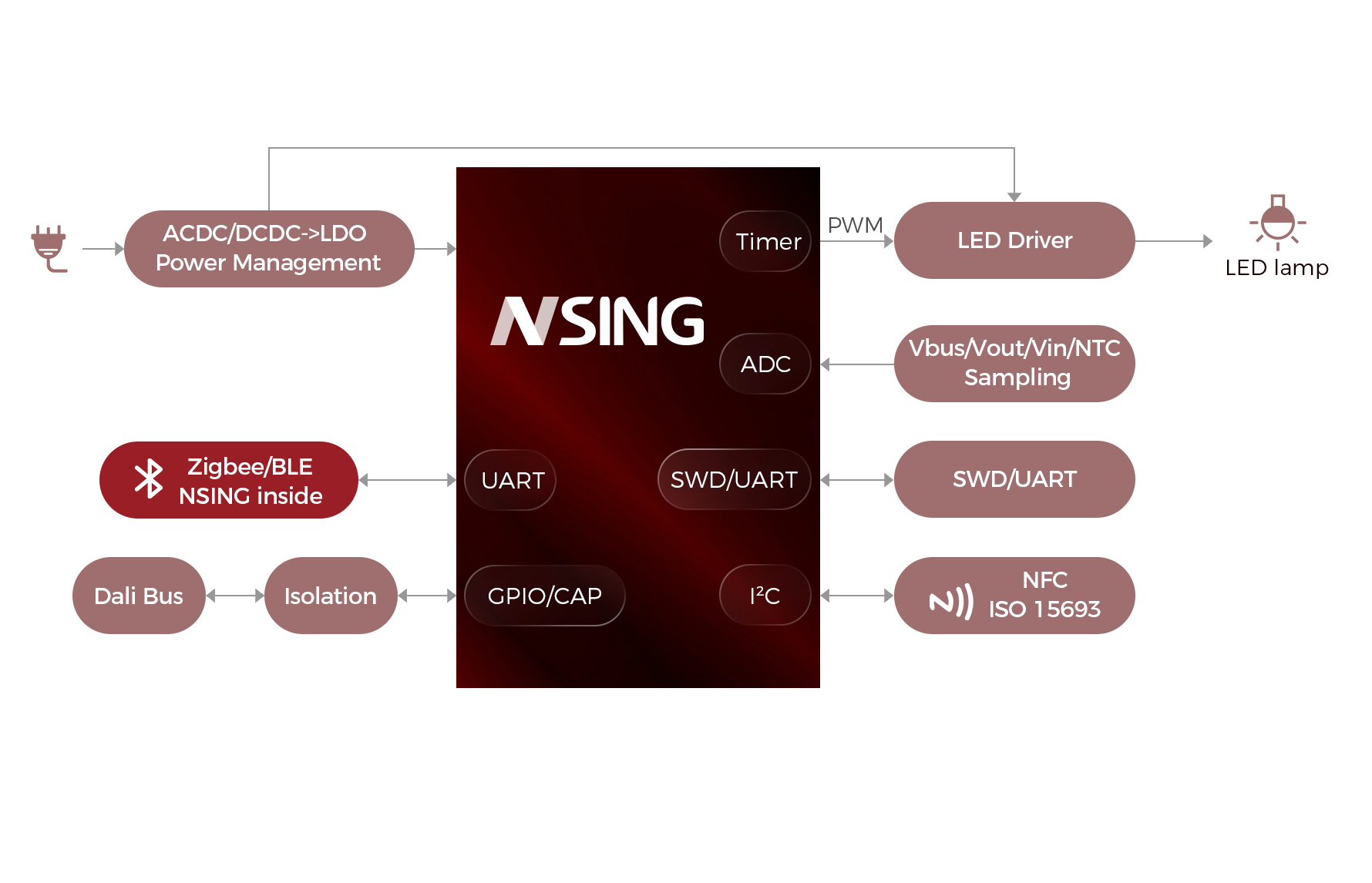

The DALI power supply uses a 32-bit Arm® Cortex®-M4F core, with a maximum operating frequency of 72MHz, supporting floating-point operations and DSP instructions. It integrates up to 64KB of embedded encrypted Flash, 8KB of SRAM, and a rich set of high-performance analog devices. The chip includes a 12-bit 4.2Msps ADC, three high-speed comparators, and integrates four U(S)ART, two I2C, and two SPI/I2S digital communication interfaces.

Advantages of the N32G401 Chip:

• System Stability: High integration enhances anti-interference capability.

• High Main Frequency: Improves algorithm execution efficiency and product real-time response capability.

• Easy Development: Provides a complete set of development materials and porting guidance for quick technical response.

• Rich Interfaces: Abundant resources ensure sustainable expansion for future projects.

Recommended Models:

• N32G031 / N32G401 / N32L403 / N32WB031
